Product introduction

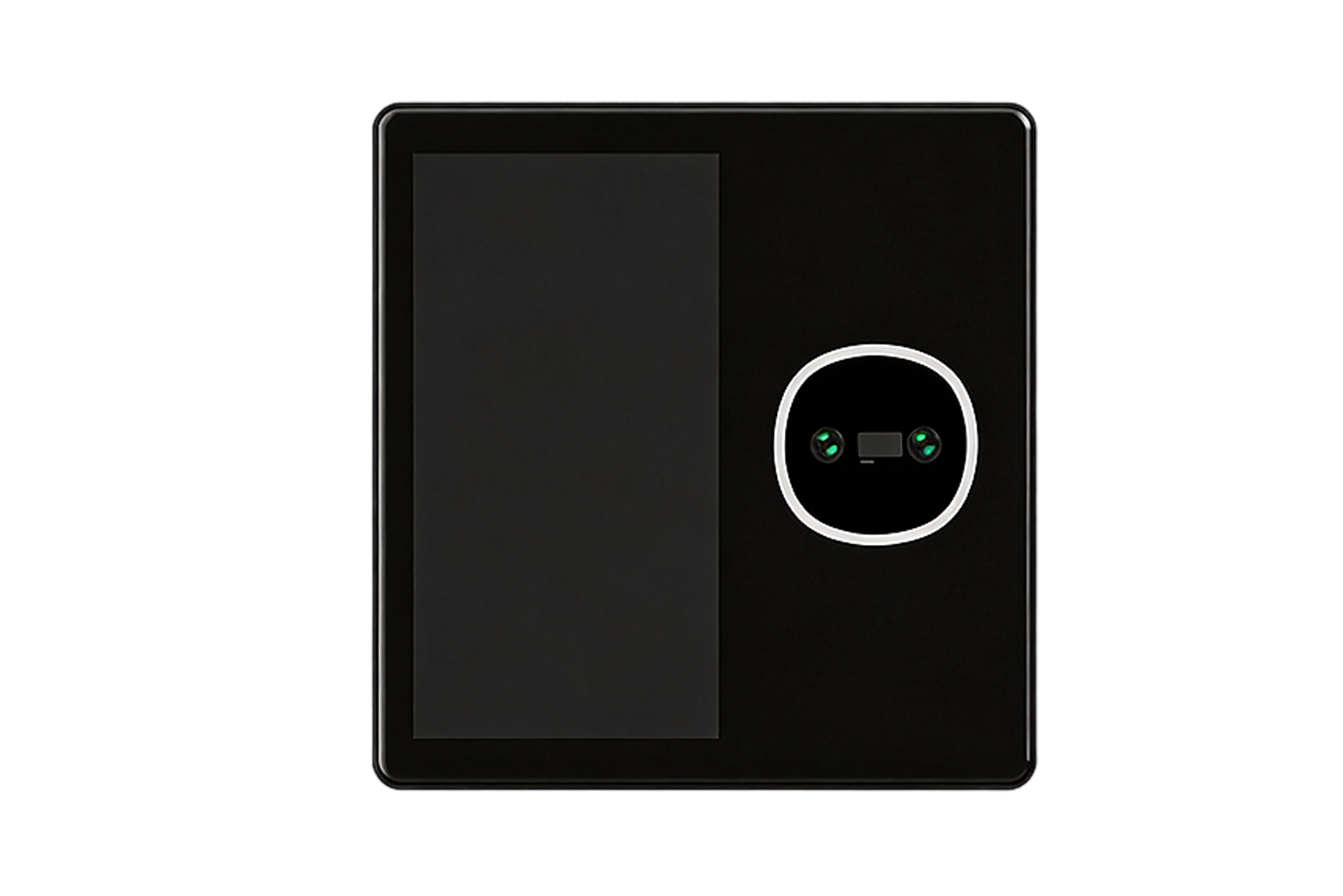

V6 is a high-performance palm recognition product. The device is capable of capturing high-definition palm print and palm vein images. Based on the embedded high-performance AI module, the device is able to achieve rapid palm detection and Palm AE. Combined with local and cloud-based palm algorithms, the device can directly generate identity IDs, which enabling functions such as palm-based identity verification.
Play Now
CPU
4-core Cortex-A53, 1.5GHz
RAM
DDR:2GB
ROM
32GB
WiFi
High performance 2.4G/5G B/T/N 802.11a/b/g/n/ac
4G/3G/2G module
FDD-LTE：B1/B3/B5/B7/B8/B20/B28 TDD-LTE：B40/B41b WCDMA：Band1（2100MHz）/Band8（900MHz） GSM：850MHz/900MHz/1800MHz/1900MHz
OS
Android 14.0
Screen
5.45 inch incell 720*1440 IPS
GPU
support
TP
Ten point touch capacitive incell
Camera
Palm Vein
Palm scanning working distance
5~12cm
Palm Recognition Success Rate
TAR@FAR = 98%@1e-6 (FRR : 2%)
Comparison mode
1:1, 1:N
SIM
Nano SIM *1
Storage Card
TF Card *1
Type_C
USB 2.0 (OTG) *1
DC Power
DC005*1
Communication
100M RJ45 *1
G-SENSER
support
GPS
support
BT
support
Speaker
2W
Microphone
support
Battery
Lithium battery, capacity: 6000mAh
Power Device
AC100-240V.50-60Hz， DC 12V/2A
Device Size
L145.5mm * W136.6mm * H30mm
ESD level
Contact discharge ±4KV, Air discharge ±8KV
RE level
Complies with GB 9254 CLASS B specifications
Operating Temperature (condensation-free)
-10℃~50℃
Relative Humidity
0~85%
Application Area
Retail payment
access control
smart locks

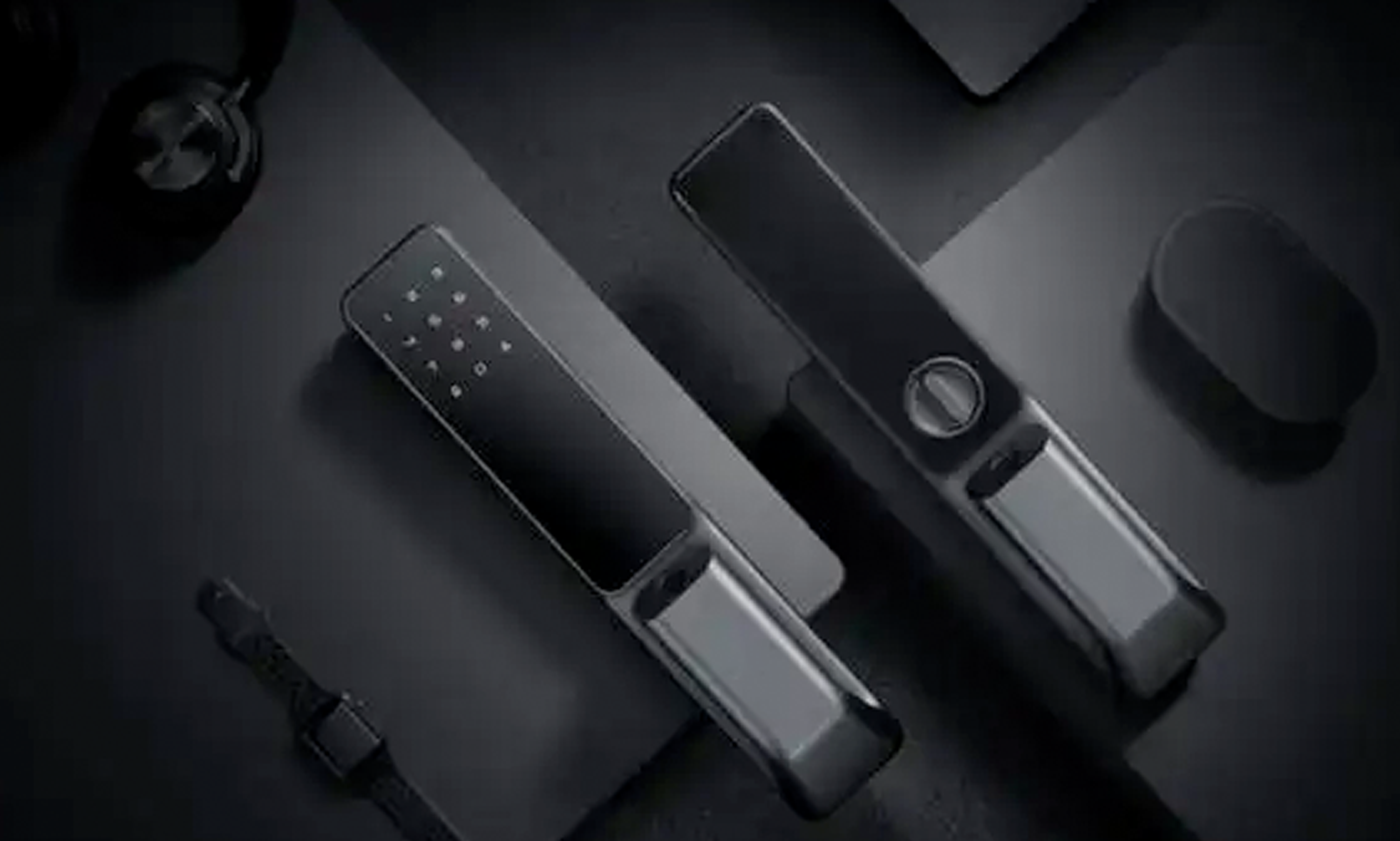

Door Lock
Security Pass
