Aurora 900
3D structured-light cameras for face recognition

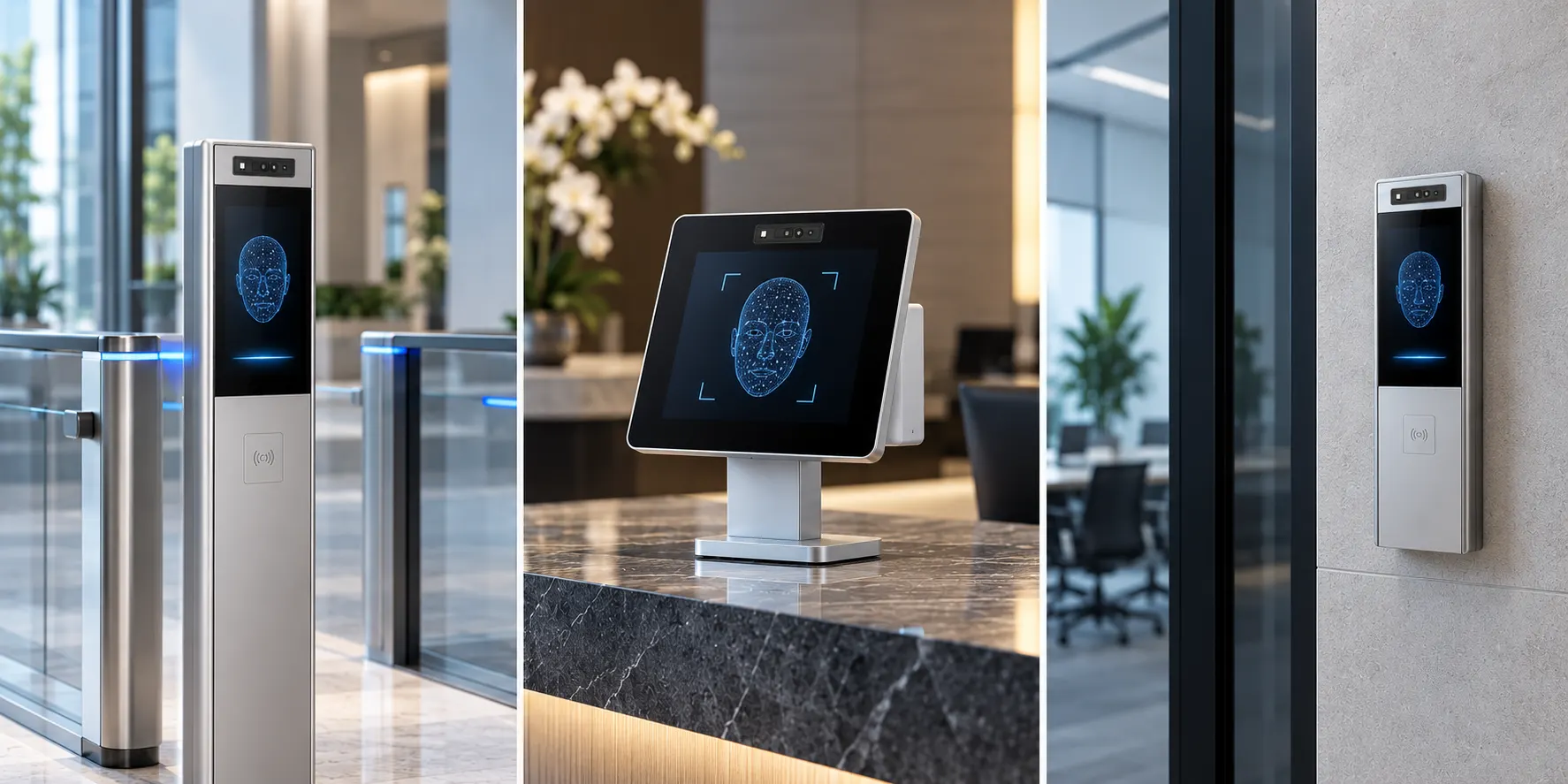

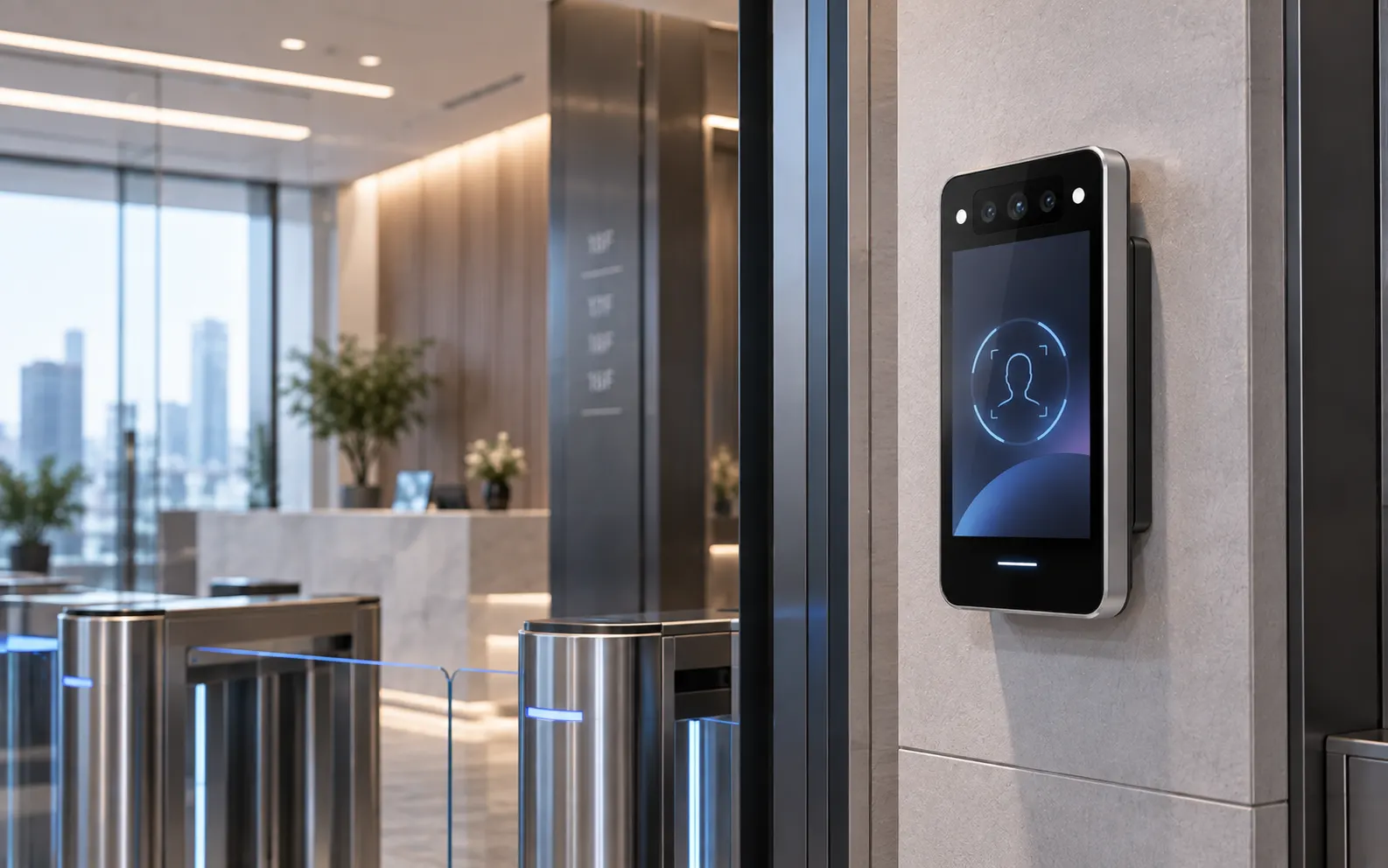

Built on DEPTRUM’s 3D structured-light technology, the Aurora 900 series captures RGB, infrared and depth data for face recognition. The cameras balance image quality, recognition range and adaptability to different environments, bringing 3D vision to facial recognition payment, identity verification and access control terminals.

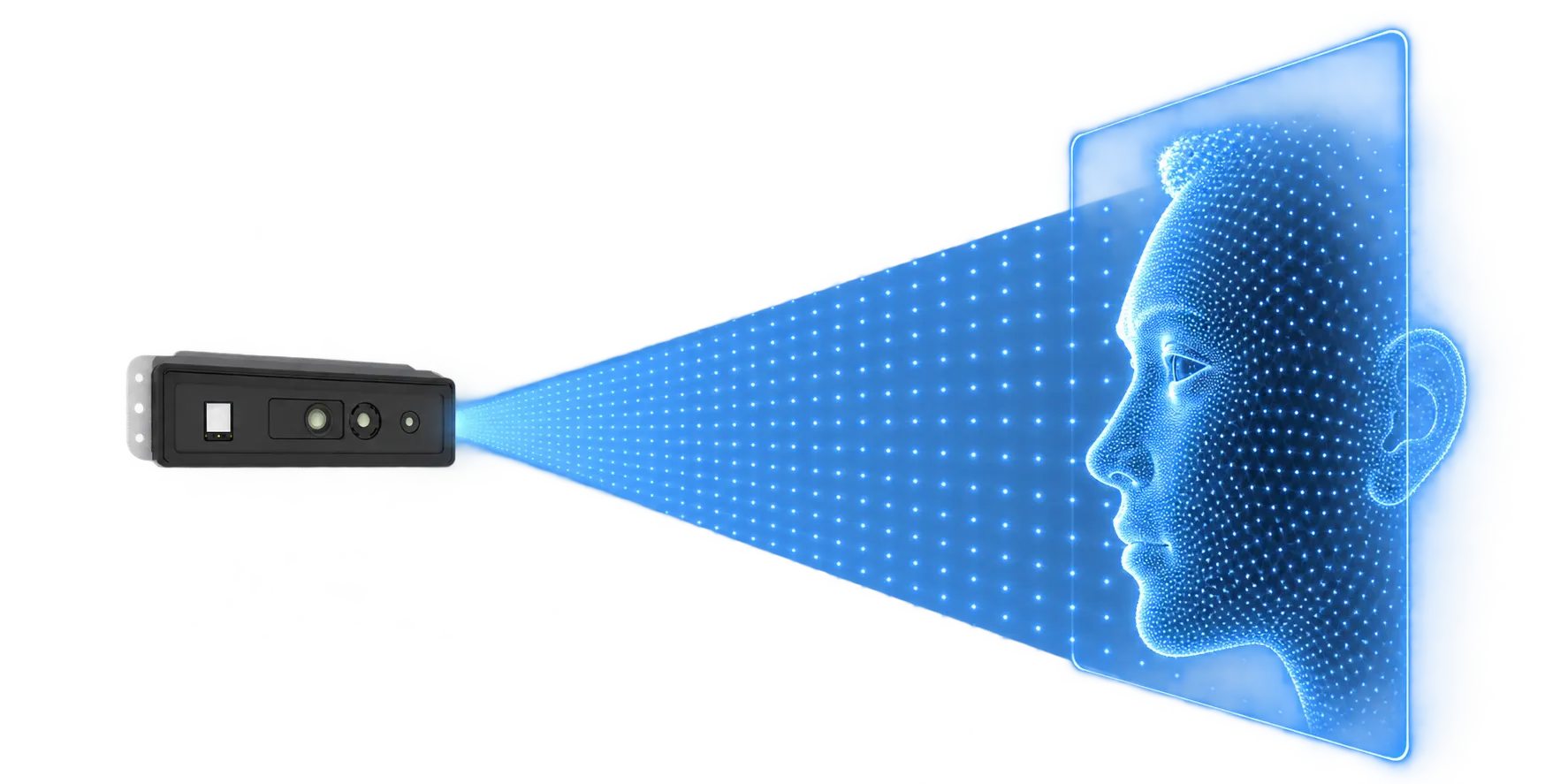

Capture facial geometry in 3D
Speckle structured-light technology captures facial depth, adding spatial information beyond 2D images to improve visual perception for face detection and recognition.

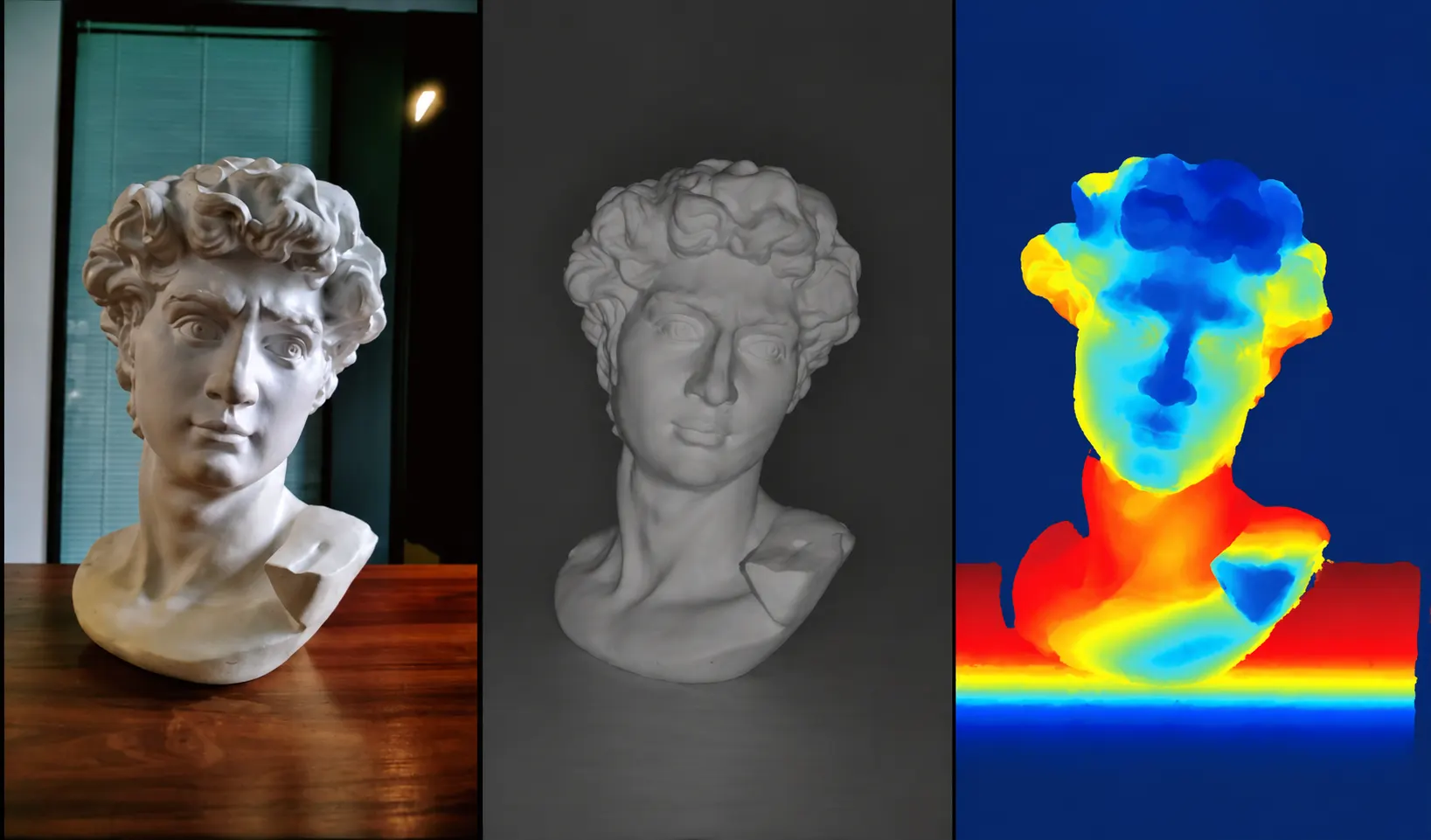

Aligned RGB, IR and depth data
Synchronized RGB, infrared and depth streams with pixel-level alignment provide a comprehensive visual data set for face recognition and related algorithms.
Flexible integration across terminals
Face recognition at 0.3–1 m and close-range code scanning support flexible integration into a wide range of recognition terminals.

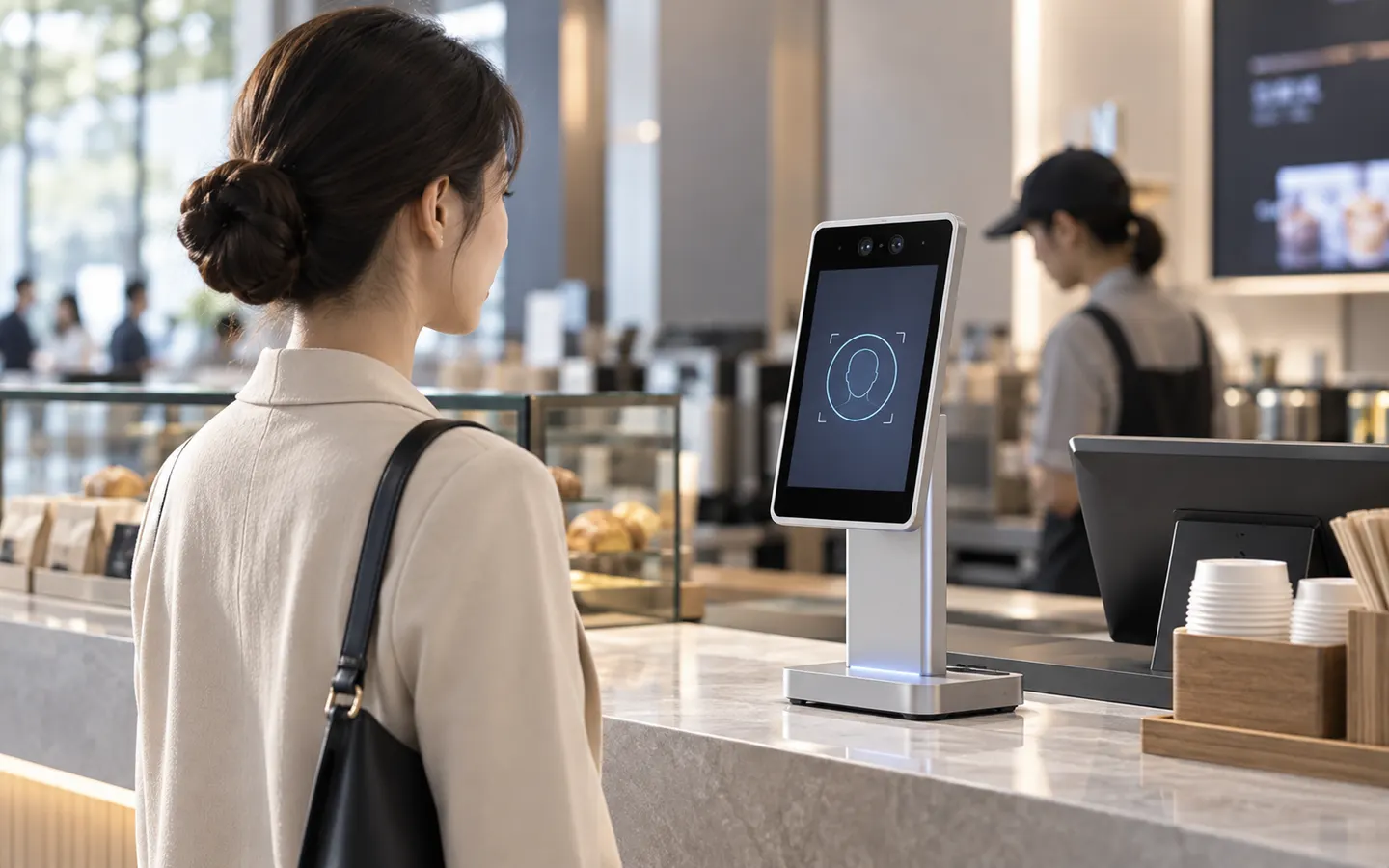

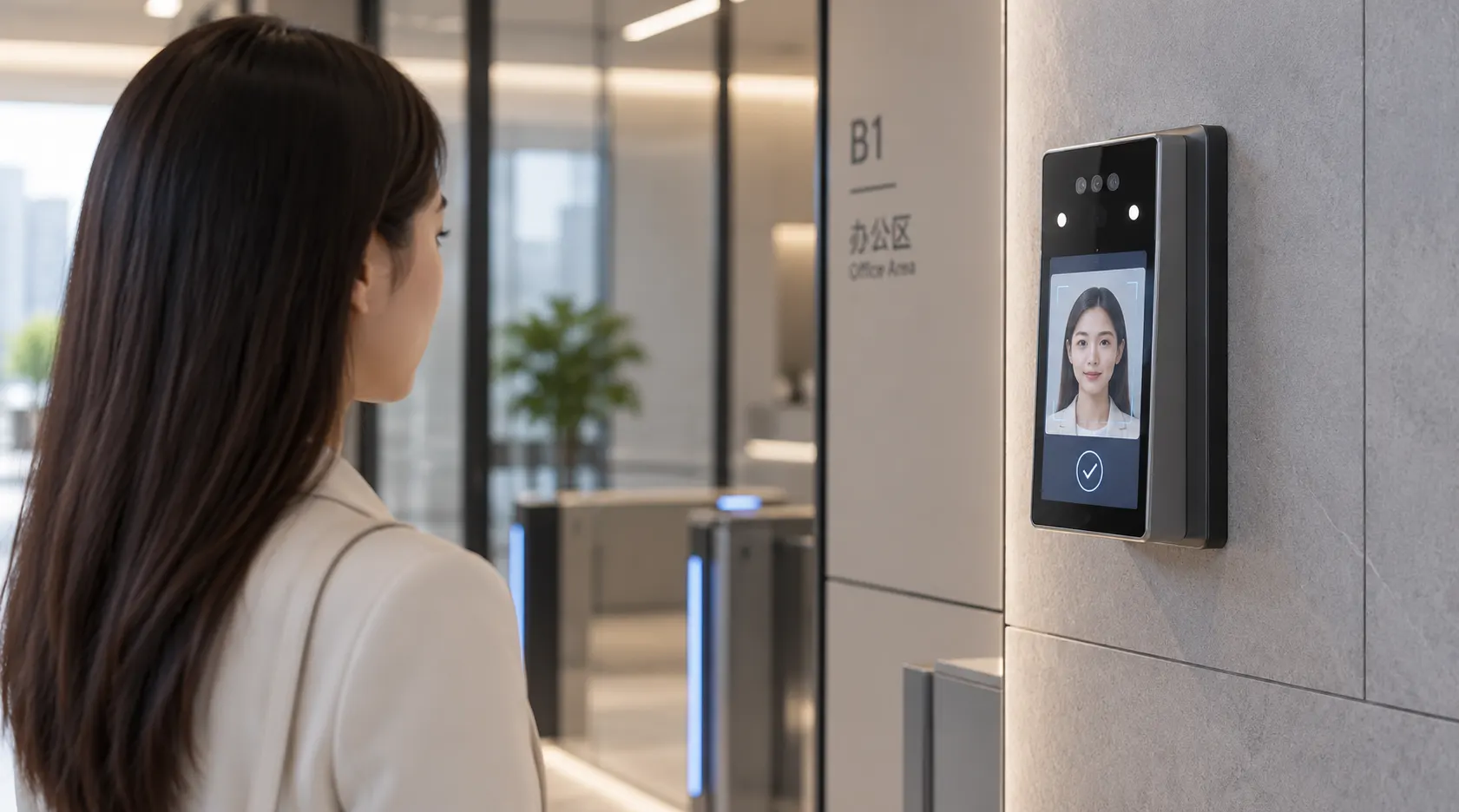

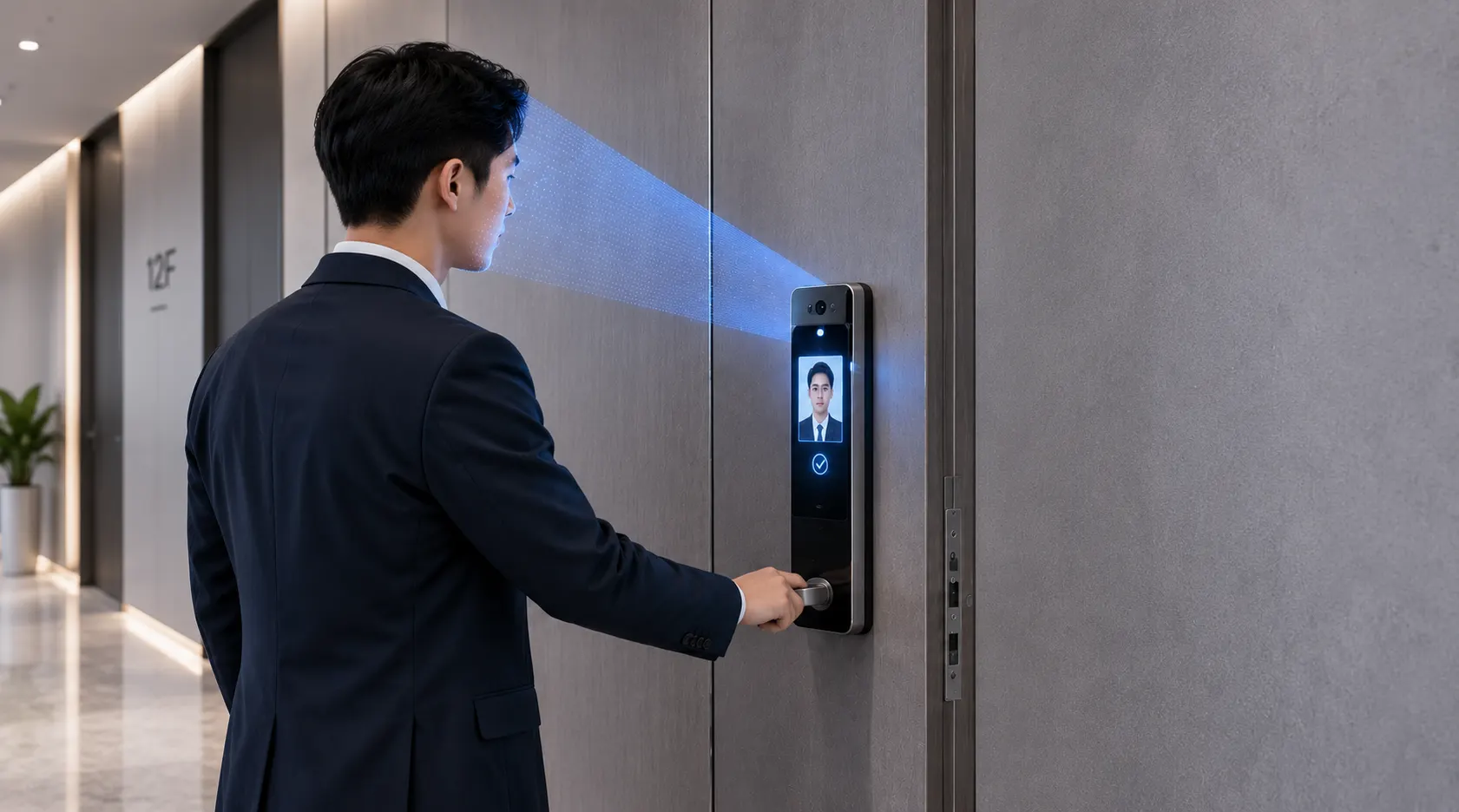

Applications
DEPTRUM

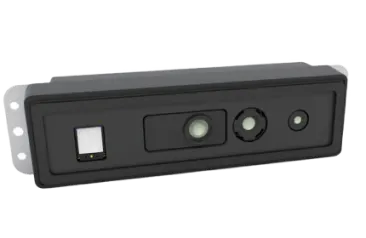

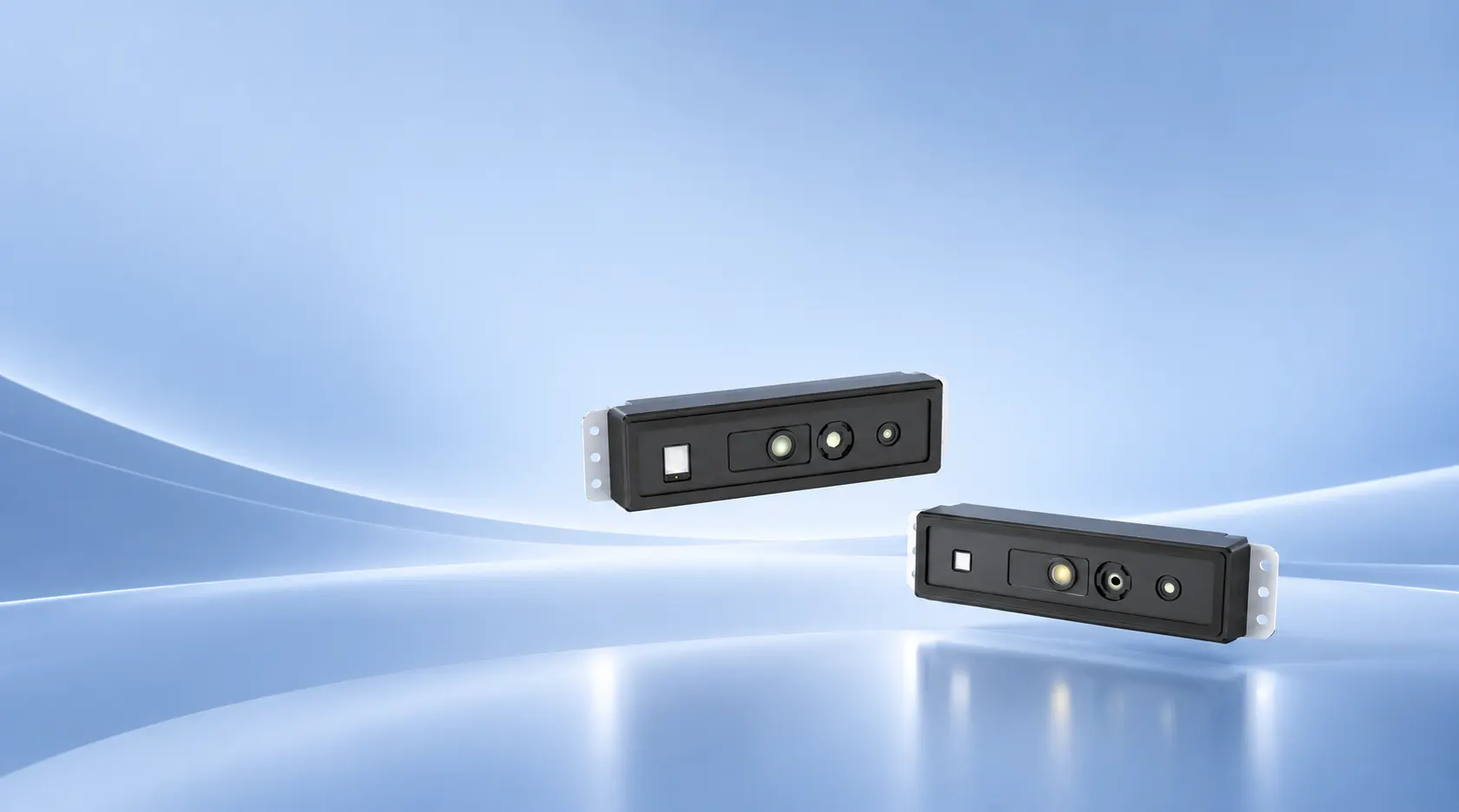

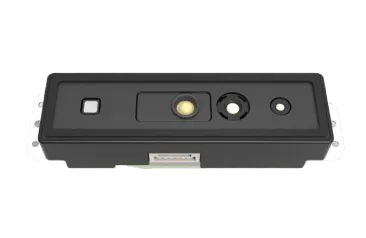

Aurora 900 Series
Swipe to view all models and specifications
| Model | Aurora 900 | Aurora 910 |
|---|---|---|
| Product image |  |  |
| Product category | 3D depth camera | USB Lite 3D camera module |
| 3D technology | Speckle structured light | Monocular speckle structured light |
| Key capabilities | RGB / IR / depth fusion | RGB / IR / depth output |
| Depth range | 0.3–1 m | 0.3–1 m |
| Depth precision | ±3 mm @ 0.5 m; ±4 mm @ 0.8 m; ±7 mm @ 1 m | 2 mm @ 0.3 m; 3 mm @ 0.5 m; 4 mm @ 0.8 m; 7 mm @ 1 m |
| Face recognition distance | 0.3–1 m | 0.3–1 m |
| Code scanning distance | 5–30 cm | 5–20 cm |
| RGB / IR / depth alignment | Hardware synchronization; pixel-level alignment | Time synchronization; pixel-level alignment |
| Ambient light range | 3–100,000 lux | 10–80,000 lux |
| Module dimensions | 61 × 18 × 13.5 mm (excluding mounting tabs) | 69.2 × 18 × 13.5 mm |
| Average power consumption | Face recognition: 1.65 W; code scanning: 1 W | Face recognition: 1.55 W; code scanning: 1 W |
| Interface | USB 2.0 Wafer | 6pin Wafer / USB 2.0 |
| Supported platforms | Windows / Linux / Android | Windows / Android |
| Typical applications | AI + 3D, facial recognition payments, volume measurement, smart locks and access control | Facial recognition payment terminals |
